Series CM

Features

Metal trolleys with supporting frame in plates 20/10 mm with panels to support the components in PVC thickness 10 mm, eyebolts for the lifting and rubberized wheels.
Covers in unbreakable transparent polycarbonate with spring closure for modular switches.
Access with plug CEE P17 IP67.
Distribution with sockets CEE P17 IP67.
General thermomagnetic-differential circuit breaker, sockets protected by thermomagnetics.
Protection degree IP44 to be advanced.
Manufactured according the regulations EN 61439-1 (CEI 17-113); EN61439- 2 (CEI 17-114)
Transformers manufactured according the regulations CEI EN 61558-1, 61558-2-4, 61558-2-6.

series CM	Transformer	Sockets CEE P17
		63A	32A	16A	32A	16A	32A	16A
Item		3P+N+E	3P+N+E	2P+E 230V	2P 48V	2P 48V	2P 24V	2P 24V
CM16KSPS	Single phase for safety 6KVA 400/24-48V				3			3
CM112KSPS	Threephase for safety 12KVA 400/24-48V				3			6
CM425KIPS	Threephase for insulation 25KVA 400/400V		1
CM545KIPS	Threephase for insulation 45KVA 400/400V	1

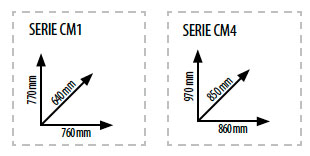

N.B. Further combinations are possible on request. Other dimensions from the standard ones are subject to the type of set up.
